The Motorchecker for R/C - Model - Electric
- Motors

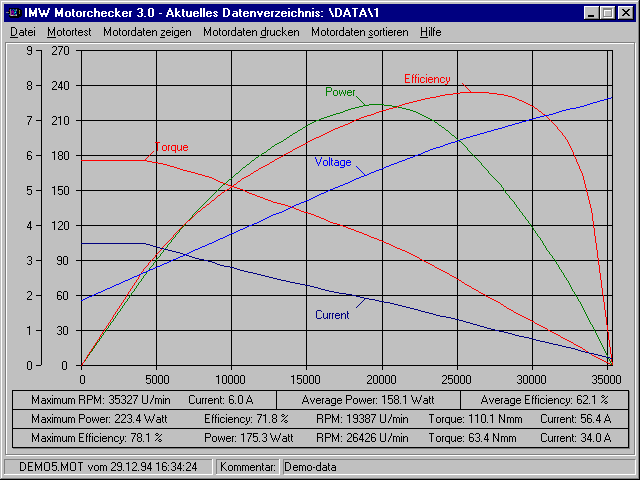

Screenshot of the IMW Motorchecker Software
Version for Windows
How
does the IMW Motorchecker work
- The IMW Motorchecker is a flywheel
- motorchecker. The motor is powered with a electronicly regulated, simulated
6 cell NiCd - battery and accelerats a flywheel, which is mounted on the
motorshaft, from standstill until the maximum R.P.M. of the motor.
- During this process the current, voltage
and R.P.M. is measured.
- The torque is calculated from the
acceleration of the flywheel, and the mechanical power is callculated from
the torque with the depending R.P.M.. The efficiency is the relation of
the mechanical power and the electrical power, which is calculated from
the current and voltage.
Technical
Data
- Flywheel - motorchecker for 05 - Elektric
- motors with electronicly regulated, simulated 6 cell NiCd - battery
- Input secure against reverse voltage,
currentlimit at 110 A
- Measuring current and voltage with
a digital resoltion of 12 Bit
- Measuring R.P.M. with optical reflexsensor
with 24 Bit Resoltion
- Data transfer to PC over serial interface
- port ( RS 232 )
The
IMW Motorchecker includes
- Holding device for motor with R.P.M.
- sensor and fixing material
- Flywheeel with fixing material an
relex marks
- Interfacebox with regulating device
for elektronic simulated NiCd - battery and data collection, with D-SUB
(9 contacts) serial interface cable to PC and adapter cable for motor and
battery
- IMW Motorchecker Software for DOS
and Windows 3.1 and 95 on a 3 1/2" disk and intructions
For
using the IMW Motorchecker you need the following accessories
- PC better then 386dx 25Mhz VGA Grafikkarte,
640k RAM, 3,5" floppy, harddisk one parallel port for printer one
serial port for IMW Motorchecker
- System software MS - DOS 5.0 up, Windows
3.xx or Windows 95
- Printer for grafic printing - HP Laserjet,
HP Deskjet, IBM kompatible
- Power supply 12 Volt 36Ah automotive(
lead) - batterie with 120 A maximum current or 10 - cells NiCd - battery
Sanyo 1700 N-SCRC
Block
schematic of the IMW Motorchecker
More
Information
Price:
US$ 890,--
Additional information about sale,
delivery and technical data are exclusive available from
IMW Technologie, Germany, Fax.: +49 - 30 - 411 15 27 or E-Mail.
Free
Software
Download IMW Motorchecker Software Version
1.4 for DOS and 3.0 for Windows
back to IMW's Homepage
[ IMW Motorchecker | Tips&
Tricks | R/C Car Addresses in Germany |
Feedback Form | Links
]
visitors since 3/16/97
Last update 3/16/1997. Copyright
© Ingo Wülfing
